LED GAUGE CLUSTER UPGRADE KIT SILVERADO SIERRA TAHOE SUBURBAN YUKON 07-2014 DIY
23 in stock
Regular price
$39.49
Sale price
$39.49
Regular price
Unit price
per
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
- Rated and reviewed
Question about this product?
We're happy to help.
This is a DIY LED upgrade kit for any 2007-2014 GMT900 instrument cluster.
No gauge cluster or any part besides the LED's to install yourself are included.
----Materials needed for install----
Decent soldering iron with small tip https://shorturl.at/TxlPm
No clean flux (NOT plumbing flux) here is what i use https://shorturl.at/Vjxeg
A pair of good small tweezers are a must, LED's are very tiny
Soldering is required for this install and can be tricky if you have not soldered before.
--Multiple YouTube videos can guide you through this process with a visual aid but here is a basic overview of steps to install--
Soldering is required for this install and can be tricky if you have not soldered before.
Step 1: Remove your gauge cluster from vehicle
Step 2: Remove the x4 silver screws on the backside of the cluster
Step 3: Separate the top gauge lens using the black push tabs
Step 4: Gently remove your needles using a plastic pry tool or even a plastic fork
Step 5: Remove the white midplate off by releasing the lower and side clips then tilt up and pull towards you

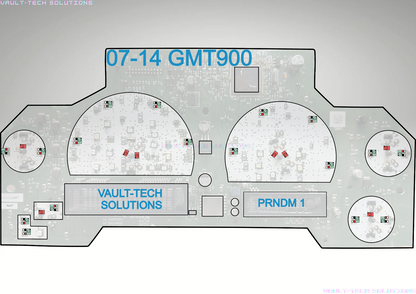

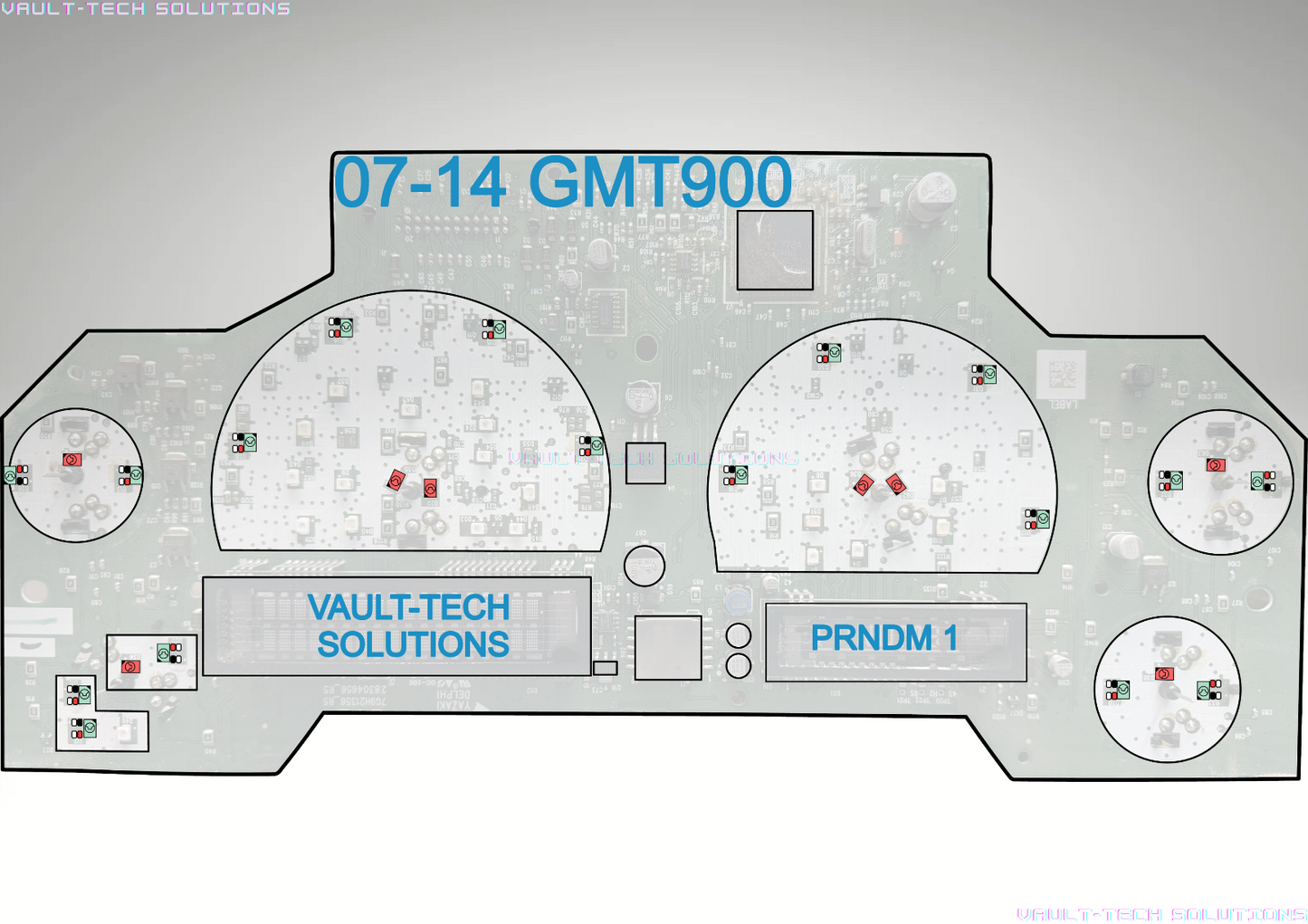

Step 6: Apply flux to the x17 backlighting LED's as shown in green on the listing picture (these will have x4 pins)
Step 7: Desolder the x17 backlighting LED's (Using tweezers and lifting up while desoldering 2 pins can make removal easier)

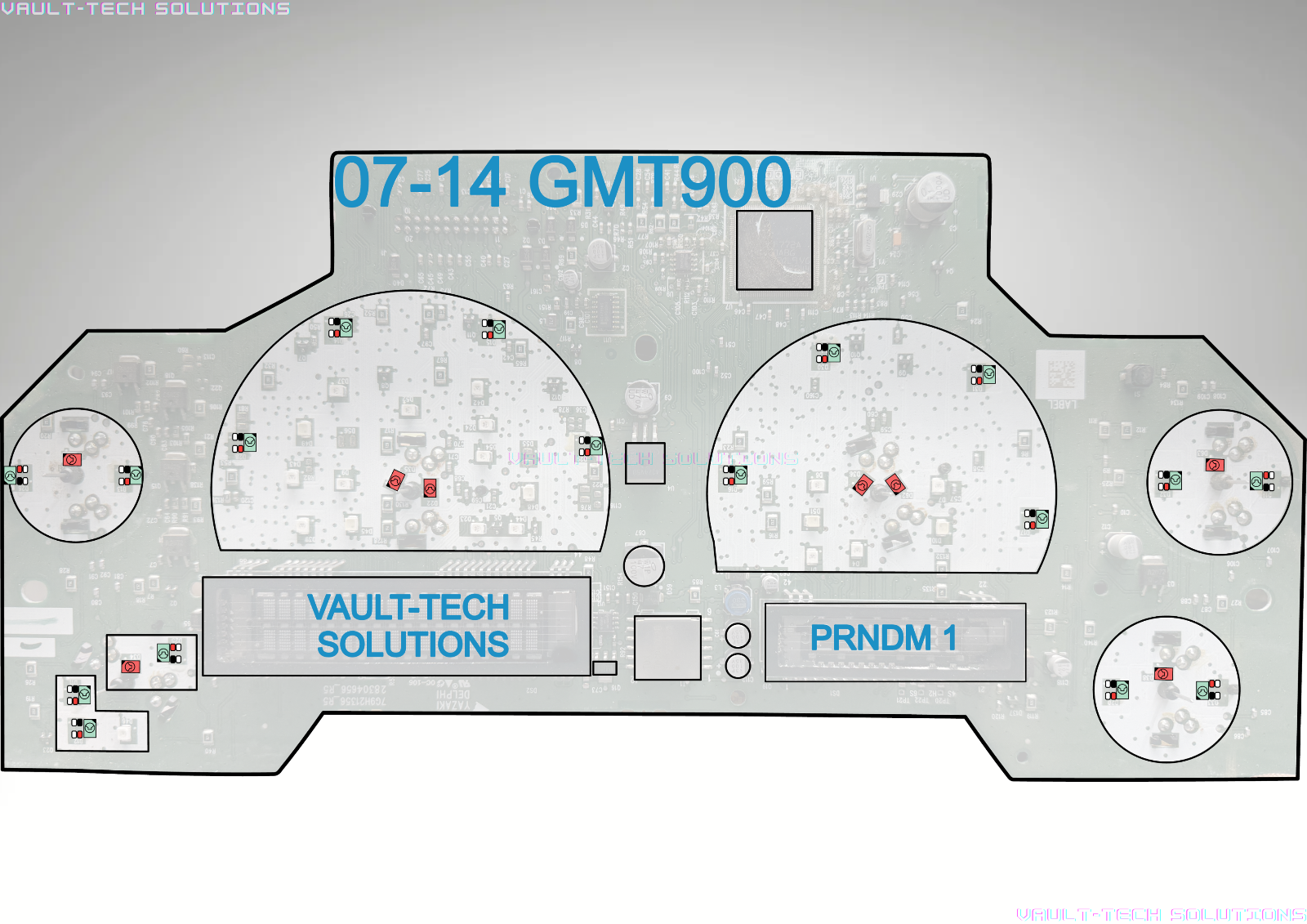

Step 8: Solder the new LED's in the orientation shown in the listing picture (Be 100% sure you are only soldering to the 2 pads)
Step 9: Attach the midplate and x4 silver screws on backside
Step 10: Plug cluster into your vehicle with only ignition on to properly set your needles
Step 11: Start vehicle and ensure you are happy with the needle accuracy
Step 12: Clip on the outer gauge lens then reinstall fully in vehicle
On these LED's you match the small notched (negative side) to the black negative i have marked on the listing picture.
These will dim properly just as your factory lighting did.
x20 LED's will be included to account for trial and error, only x17 are needed.
Have questions? please ask and i can do my best to answer them.
Brand: Vault-Tech Solutions
Type: LED
Voltage: 3 V
Number of Bulbs: 20
Suitable For: Instrument Panel Light
Placement on Vehicle: Front
Lighting Technology: LED
