2003-2006 Escalade Denali CD Changer Charging Port Switchplate Cover USB C Volt.

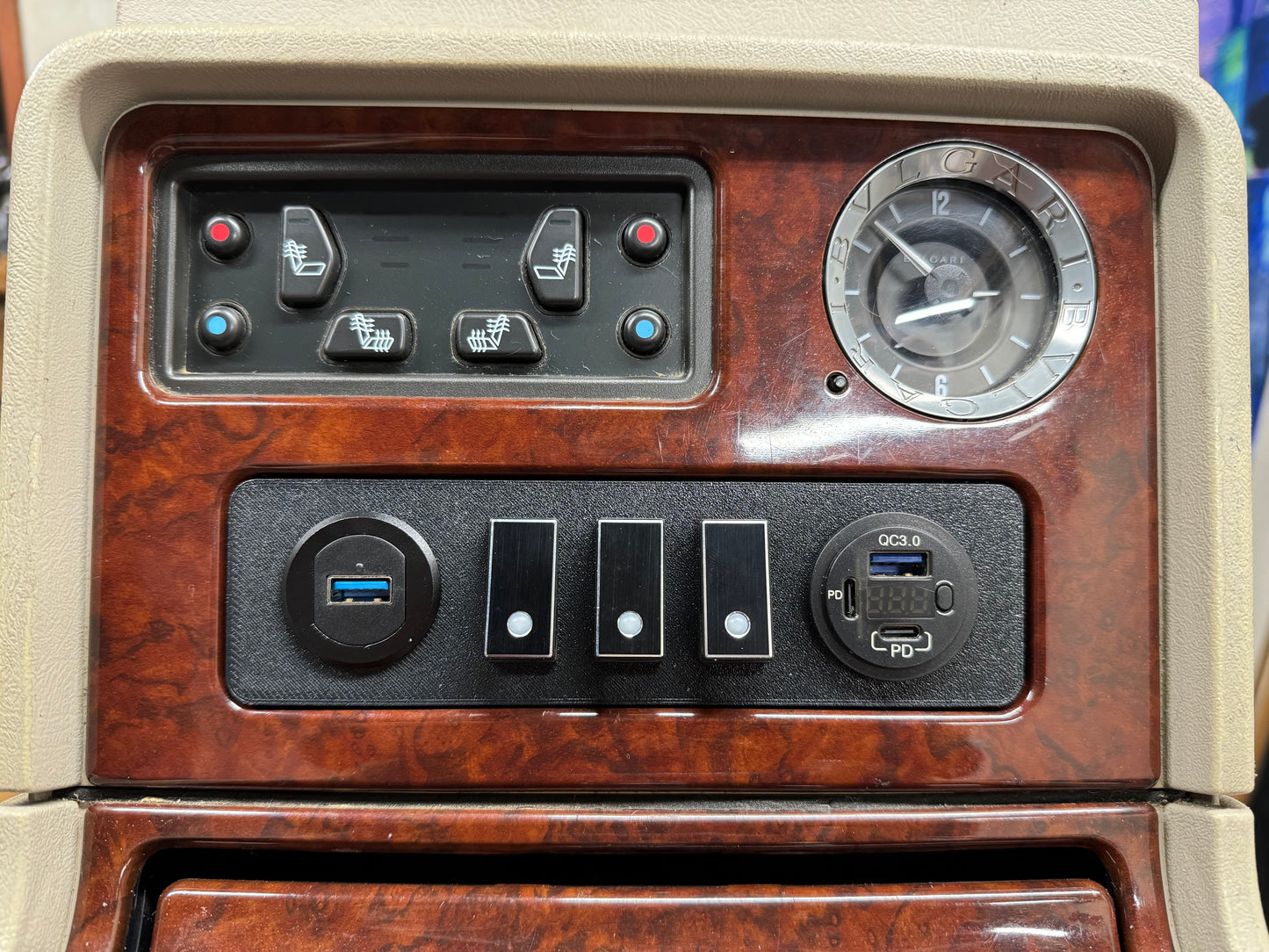

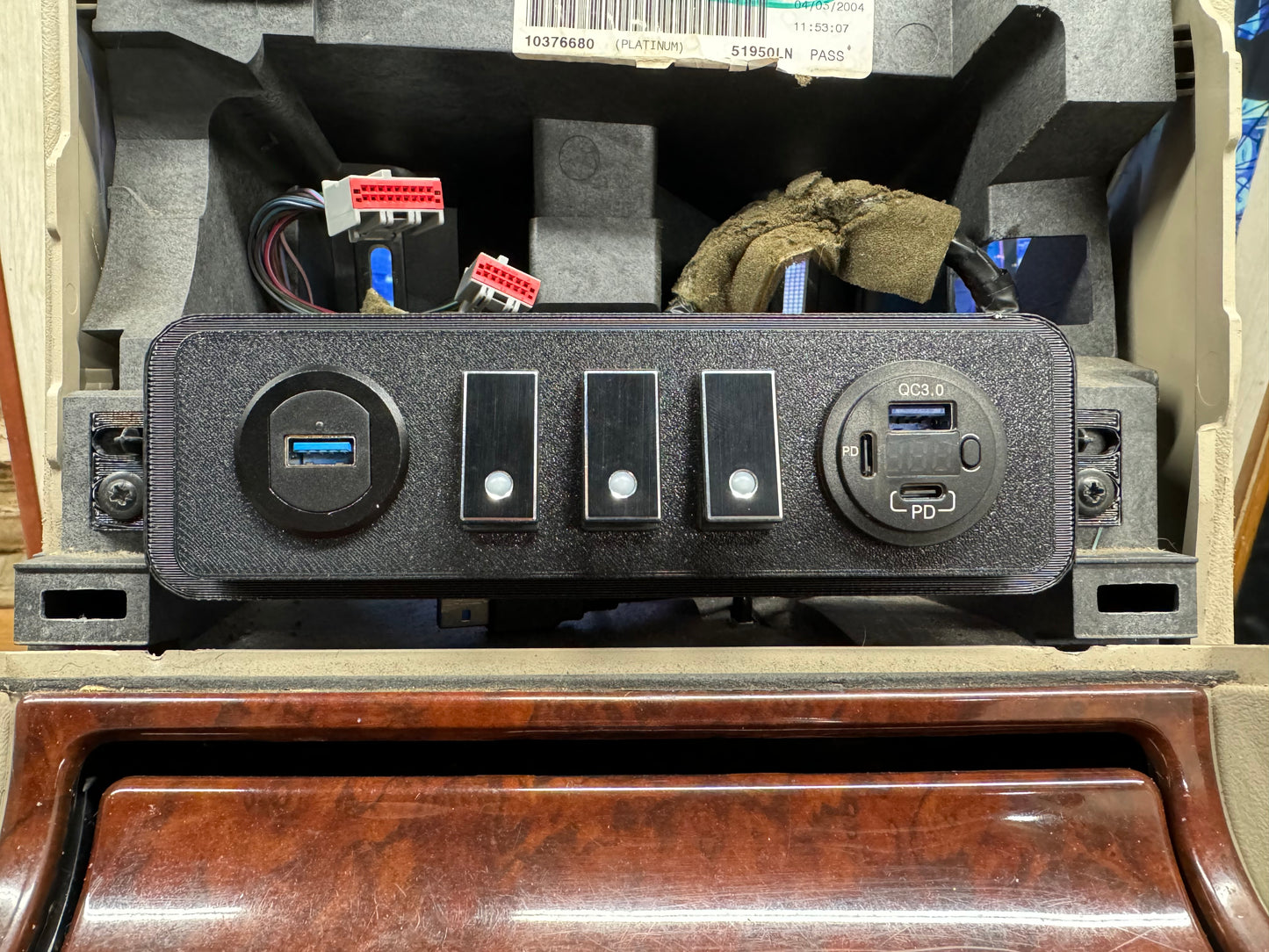

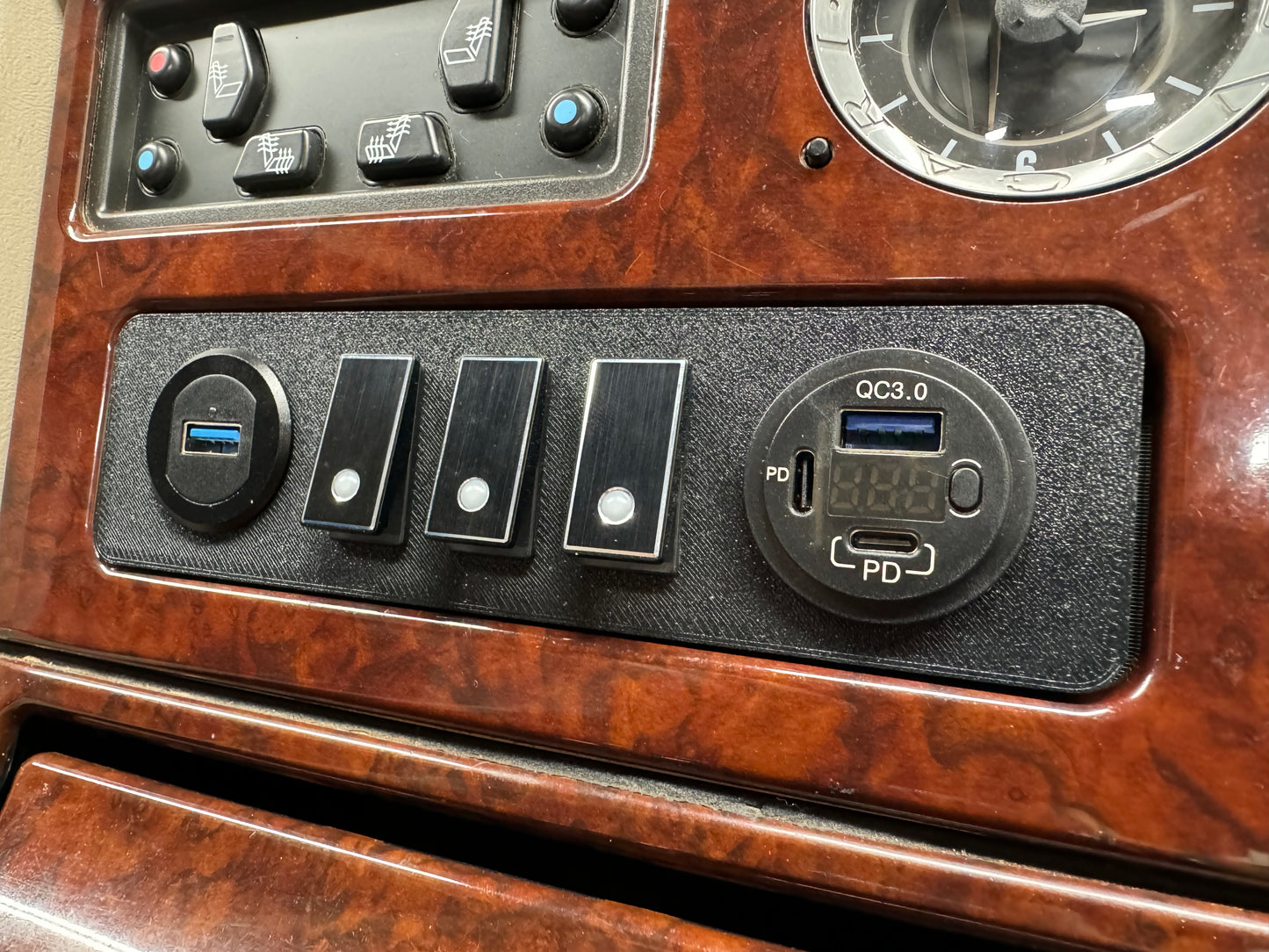

This directly replaces the CD changer in any 2003-2006 GMC Sierra/Yukon Denali , or Cadillac Escalade. You can reuse the original 2 screws from the CD changer to install this switch plate. This model includes two 3cm (1.181”) holes housing a USB charging hub , and a USB pass though for those with Apple CarPlay or Android Auto radios.

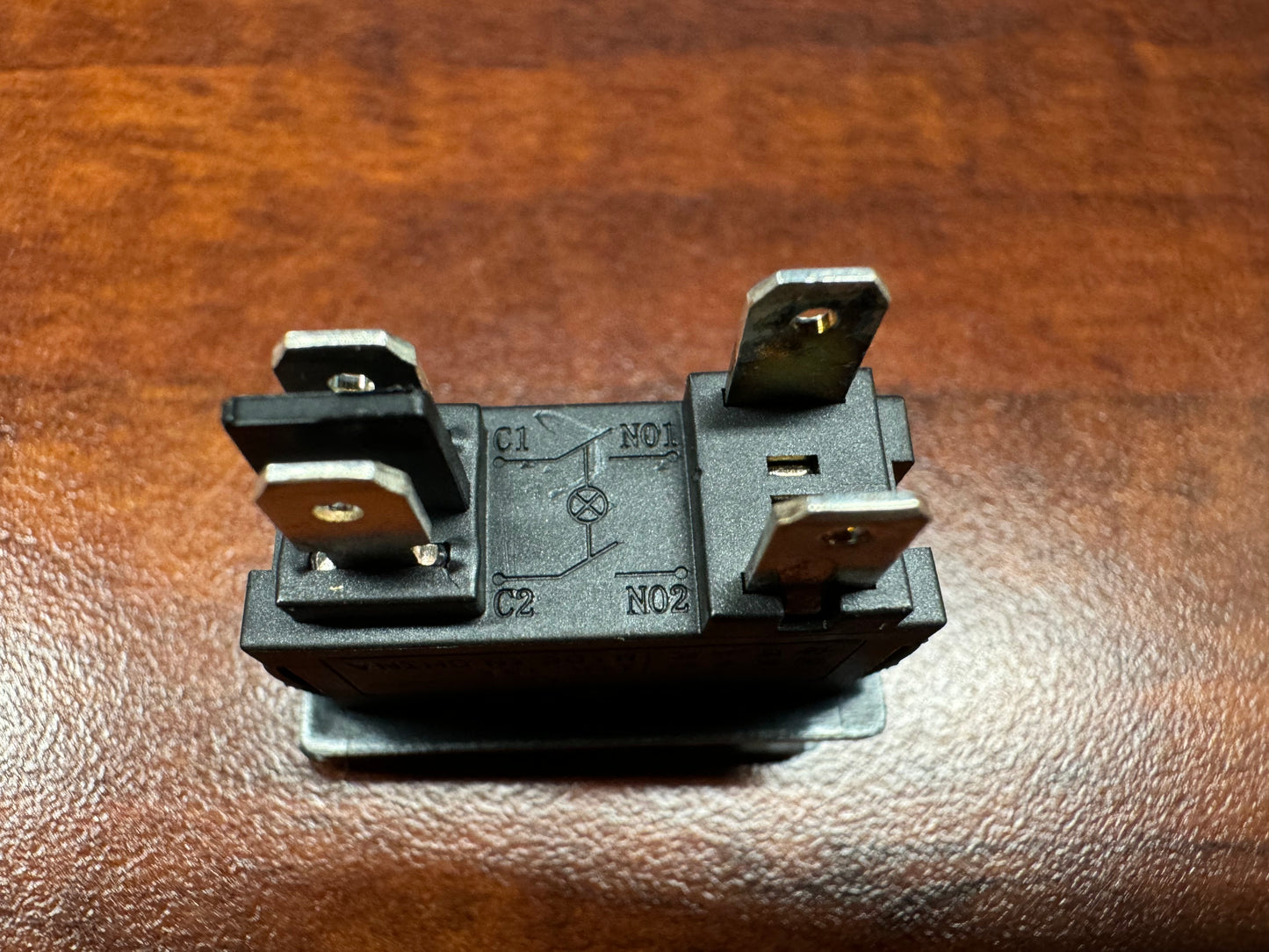

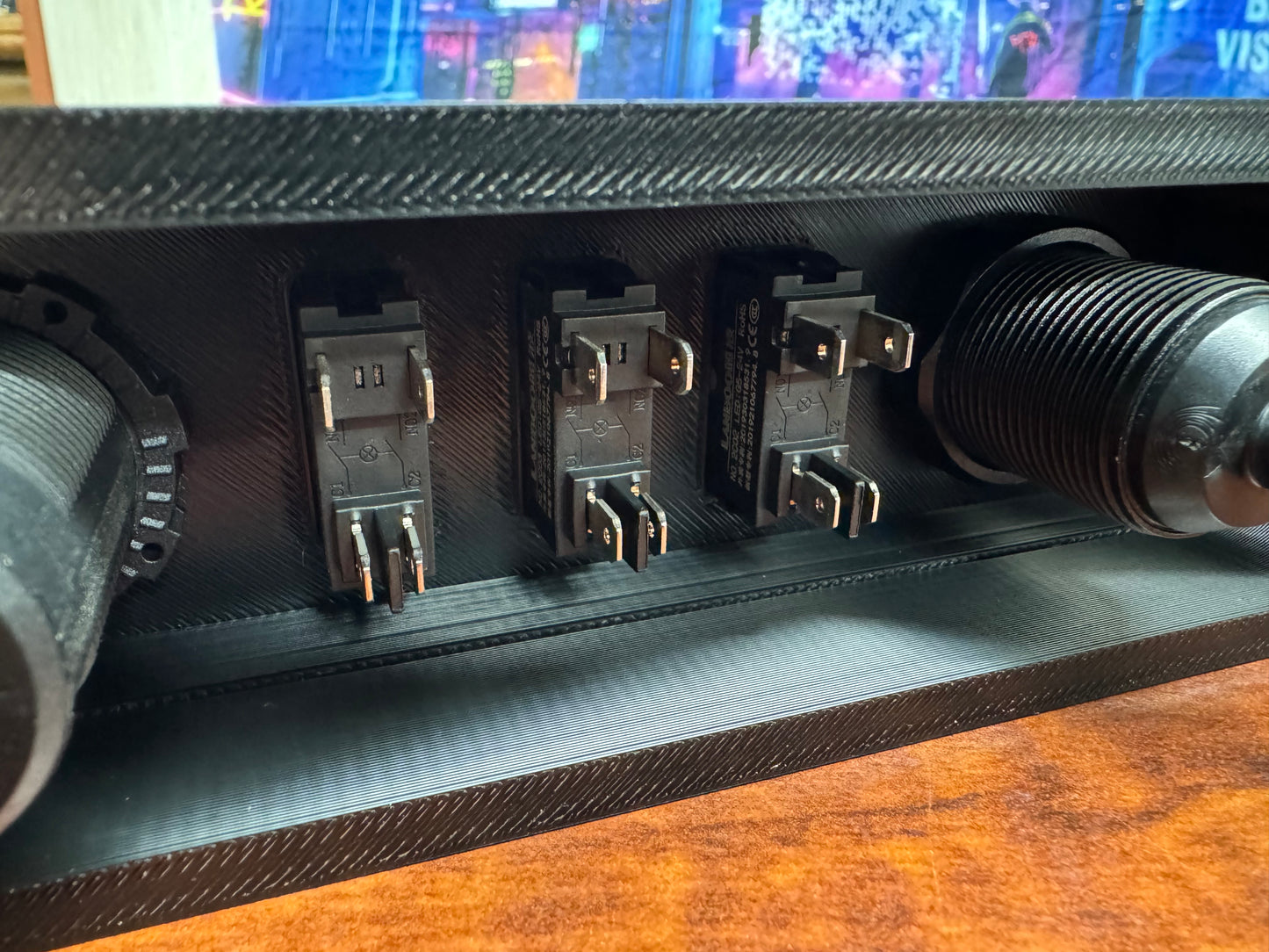

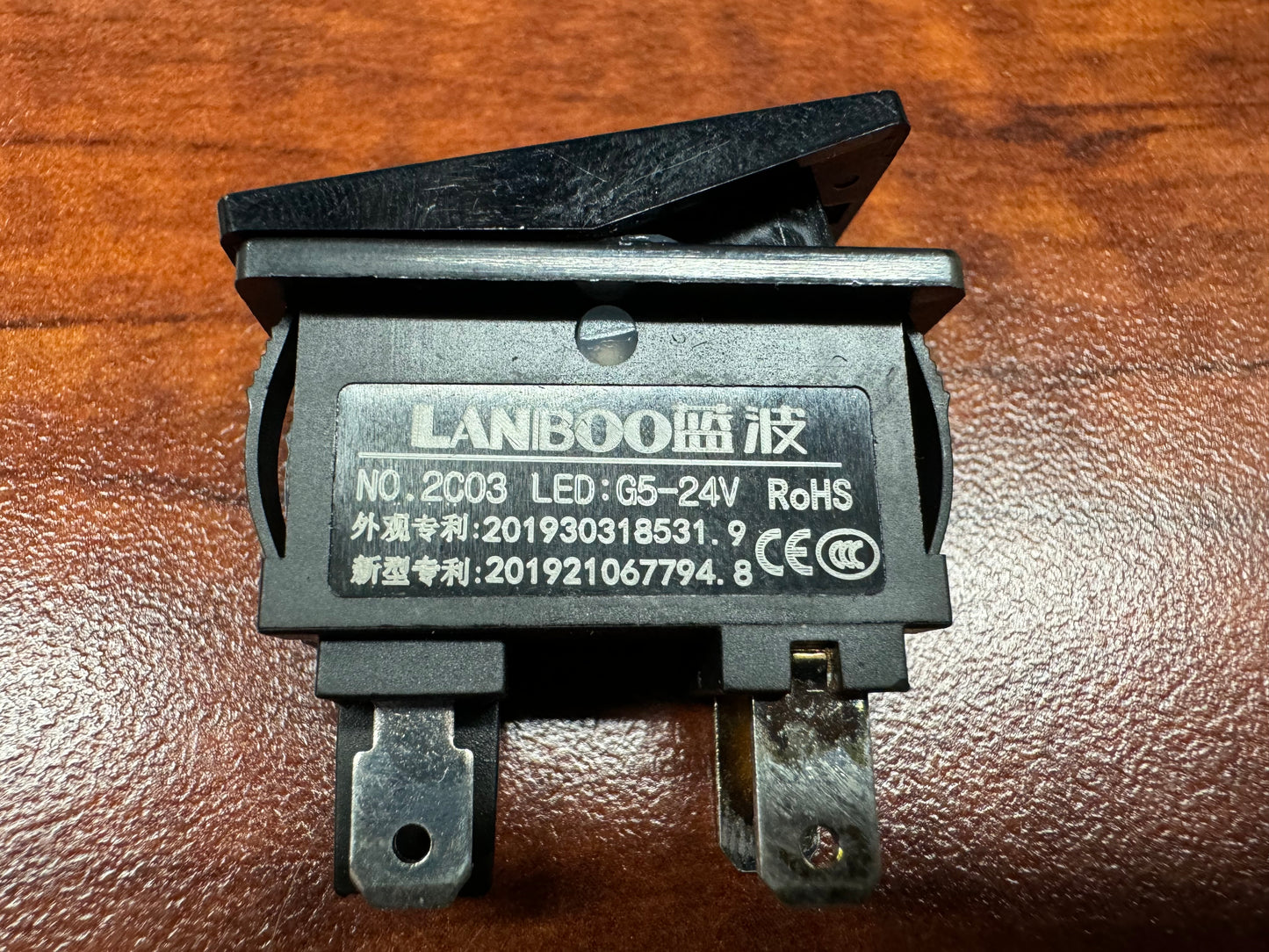

This version has x3 5-24V 16A Brushed Black Aluminum finish switches. Switches use standard 4.8mm (3/16") Female Spade Connectors for hooking up your accessory of choice whether it be a light bar, fog lights or under glow/rock lights. Switch indicator light is green, and is optional to wire in.
The charging adapter has 2 USB C 20W Power Delivery ports, and a 18W QC3.0 USB A port. The display in the middle illuminates blue and will show the voltage of your vehicle. The charger can be turned on and off at any time with the small button on the right hand side. Rubber covers for each side are also included and swap on easily. Each adapter is secured with a large nut on the back side which should be hand tight. You can swap the places of both adapters to whatever your preference may be.
To wire in the charging adapter it is recommend to splice into the factory 12V car charging port connector.

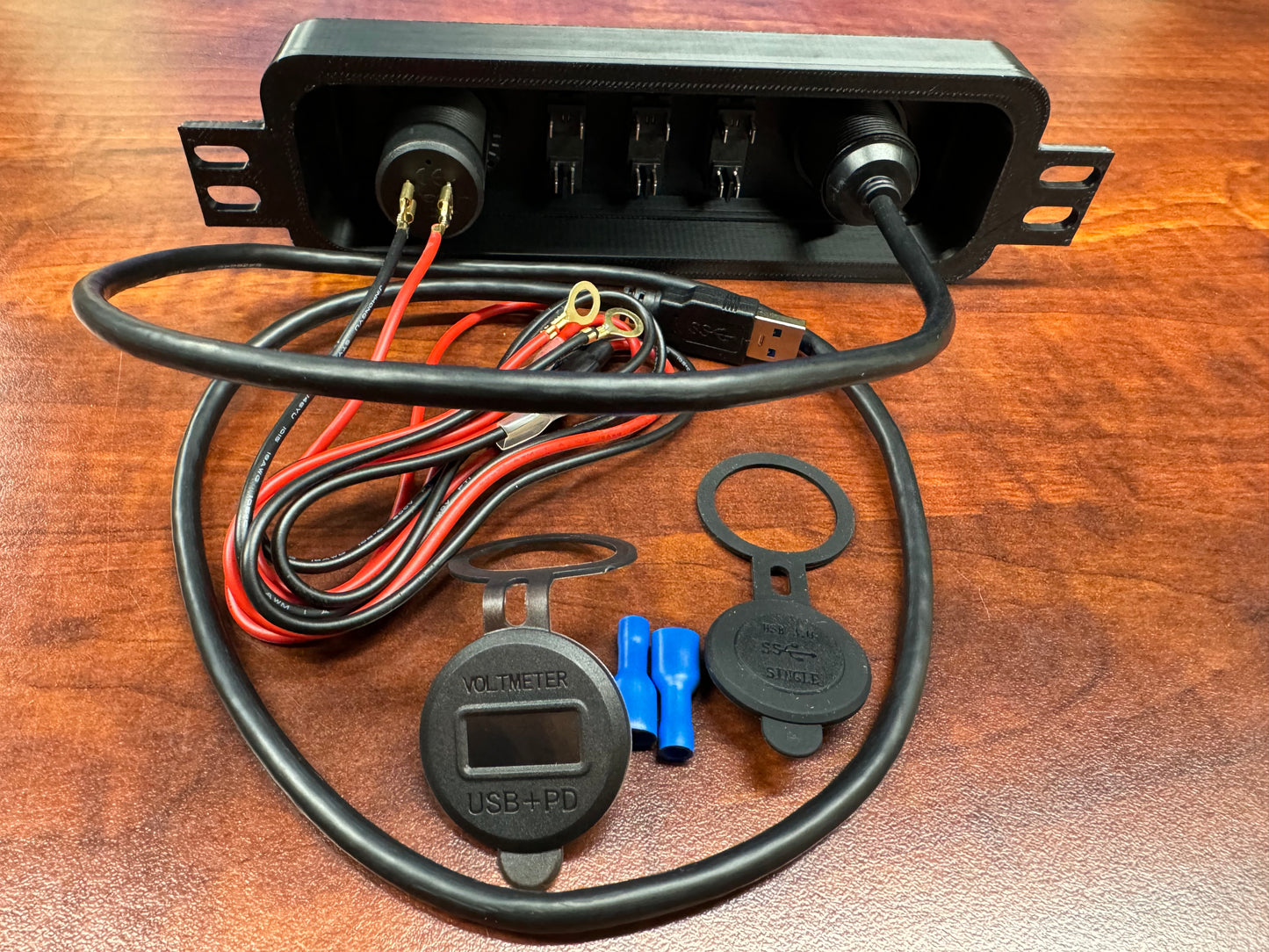

Items included is as following
1x Main 3D Printed Switch Plate
1x Charging/Volt Meter Adapter with Cover
1x USB A Pass through Adapter with Cover
3x Black 5-24V Switches
1x Charging Adapter Harness
3D printed in ABS plastic to withstand years of use and any temperature your vehicle will be subject to. Can easily be vinyl wrapped or sanded and painted.
