2003-06 Silverado Escalade Tahoe Rear Console Radio Dual USB Charging Port Panel

Direct drop in replacement of the factory rear radio in the center console. Fits any 2003-2006 GMT800 center console that had the factory rear facing radio. (Silverado,Sierra,Yukon,Yukon XL,Suburban,Tahoe,Escalade). This includes all base model consoles with no vents or heated seat switches. As well as the crew cab versions with rear facing vents. Made from ABS plastic that will not melt or deform in any climate. Snaps into place, and is secured by 4 locking tabs to ensure it will not rattle or come loose on road or off road.

Each charging adapter has 2 USB C 20W Power Delivery ports, and a 18W QC3.0 USB A port. The display in the middle illuminates blue and will show the voltage of your vehicle. The charger can be turned on and off at any time with the small button on the right hand side. Rubber covers for each side are also included and swap on easily. Each adapter is secured with a large nut on the back side which should be hand tight.

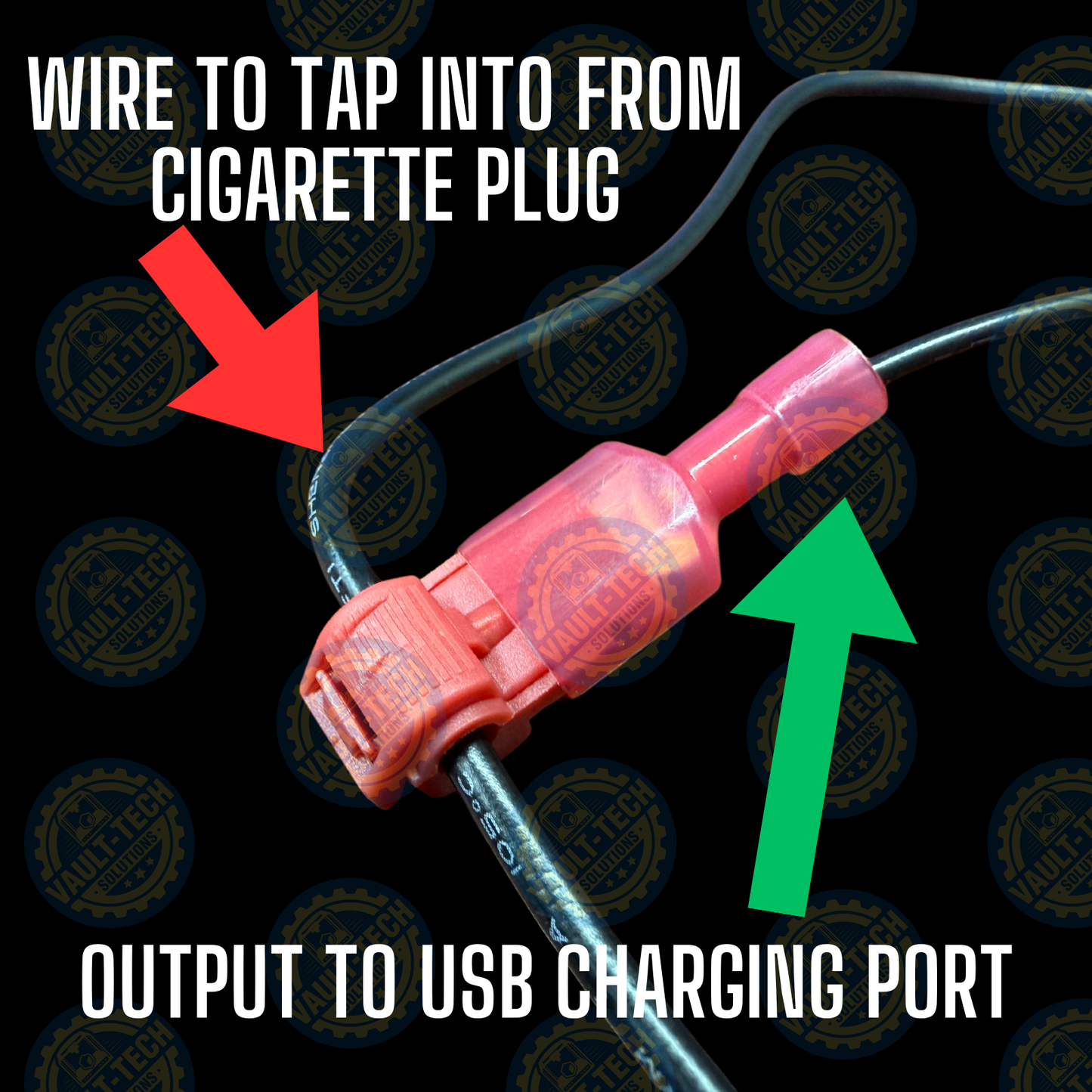

To wire in the charging adapter it is recommend to splice into the factory 12V car charging port/cigarette lighter connector. There should be 1-2 that go to the bottom of your center depending on trim level. Using the provided splice connectors, place one over each of the lighter port wires with it unplugged from the factory port. I DO NOT recommend daisy chaining these together with your factory charging port plugged in, as it may pull too amps and blow the fuse.

You will receive the following with your order

x1 3D printed charging port plate

x2 USB charger rubber optional covers

x2 USB chargers with harness

x4 T Tap splice connectors with female locking spade connectors (RED)

x4 Female Spade connectors for other install options (BLUE)
