Install the factory BVLGARI dash clock from a 2002-2006 Cadillac Escalade into your 1999-2006 NBS Silverado, Sierra, Tahoe, Suburban or Yukon.

Most lower trim optioned trucks will have a blank cubby in this space. If your truck is equipped with a Airbag  Switch, Traction Control, Parking Sensor, Or Ride Control Button these would need to be relocated or tucked into the dash still plugged in to avoid a check engine light.

You will receive the clock mount which includes new OEM clips for installation in your dash. Clock is not included, but can be easily found online or at junkyards part #15087592.

To install you will need to slightly modify the housing of the clock to fit, cut the top screw mount off flush with the body of the clock. And trim away the material i have marked in red on the last photo. The left picture is a unmodified clock, and the right picture is of what it should look like when done. Can be done very quickly with a pair of side cutters or a dremel.

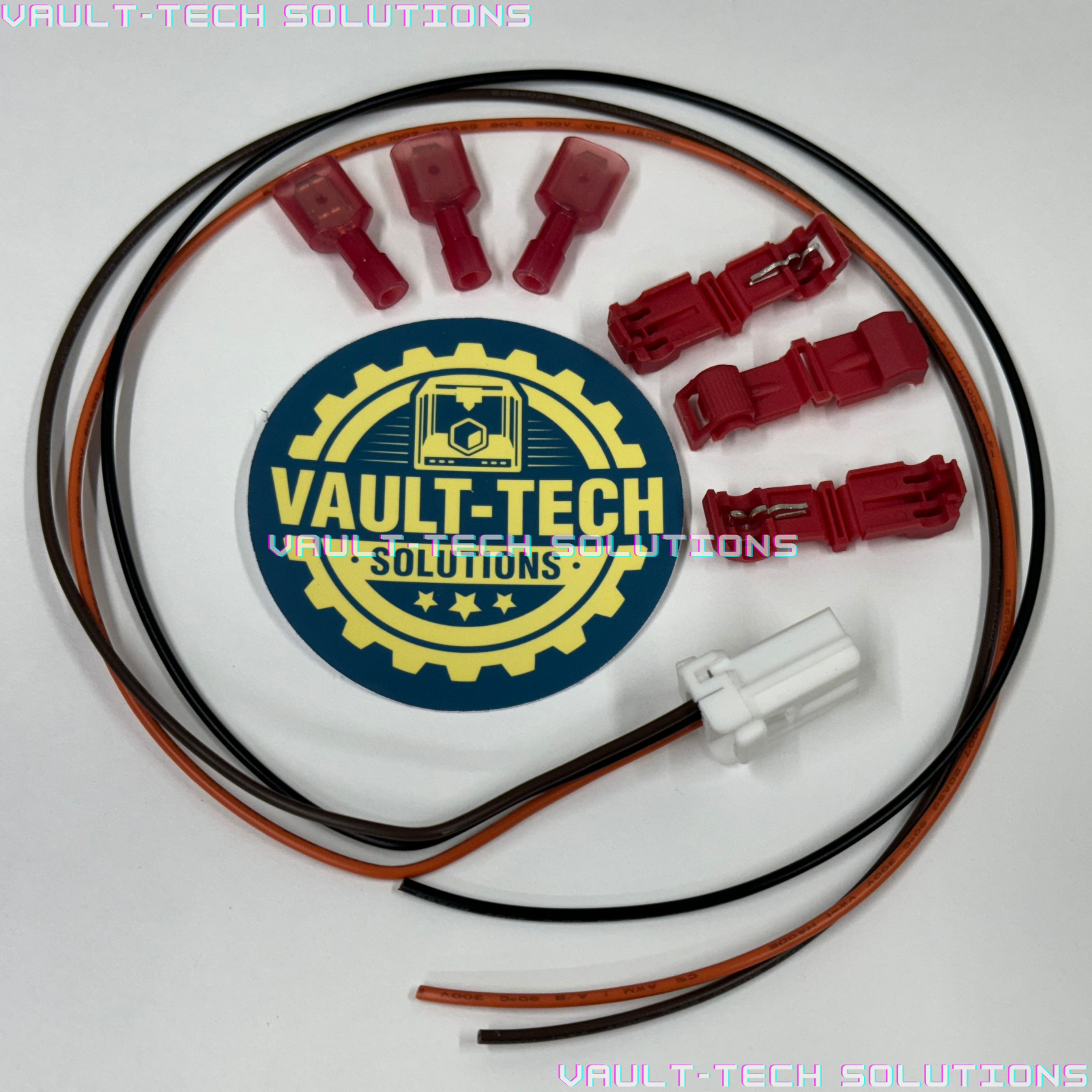

To wire your clock in using the supplied harness & T wire taps if selected.

Orange wire is Constant 12V (Even when vehicle is off to keep time)

Brown wire is Illumination 12V for clock backlighting

Black wire is Ground/Negative

Your now modified clock will now clip securely into place in the mount and can now be placed into your dash using the lower pin to center it.

This mount is 3D Printed in ASA and will not melt or deform in any temperature you vehicle will be subject to. The flat face of the mount can be sanded and painted or vinyl wrapped to match any interior.
